How to deploy and scale an ML model in production using

​

  • Freelance Senior Data Scientist
  • +7 years experience in Consulting, Tech, and Startups
  • Interests in NLP, MLOps, and AI products
  • ML trainer
  • Content creator on Medium

Ahmed BESBES

Follow me on

What we'll learn today

​This presentation will cover:

  • APIs and production machine learning
  • BentoML: an Open Source Model Serving framework
  • Overview of ML-related features
  • Demo
  • Resources to go further

Don't hesitate to interrupt and ask questions!

1. APIs and production machine learning

Because there's a life after jupyter notebooks



What happens when your model is done training?

An after-life

  • The infra team needs a minimum of code packaging and dependency management to deploy your model
  • DevOps needs to know about resource consumption
  • Business and product teams  need to stress-test the model (i.e. API needs to scale to multiple concurrent queries)
  • Developers need to access your API documentation to know how to consume it



API Requirements

As a data scientist, you want

  • Support for multiple frameworks (torch, TF, scikit learn)
  • Micro batching
  • Performance and scalability: parallelization, high throughput
  • Ability to use accelerated runtimes (GPUs)

As a thoughtful colleague, you want

  • Reproducibility
  • Dependency management
  • Documentation
  • Monitoring
  • Debugging
  • Data validation

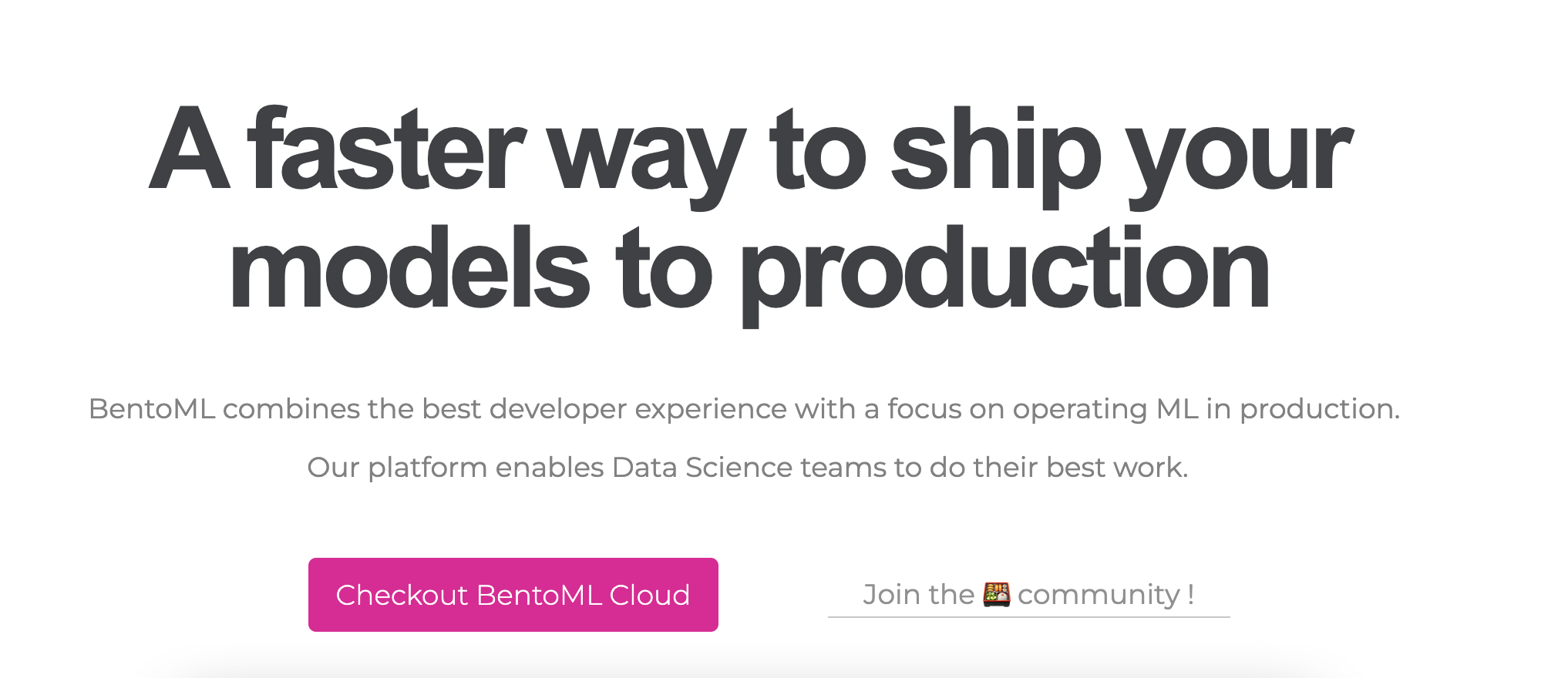

2. BentoML



Open Source Model Serving

  • Simplifies model serving and deployment
  • Packages everything you need in a distribution format called a bento

  • Enables data science agility
    • Integrates Pre/Post processing
    • Supports many popular ML frameworks
    • Automatically generates Docker container
    • Deploy to any cloud infrastructure
  • Improves the inference performance

A Bento is like  Docker container, but for ML

Bento is a file archive with all the source code, models, data files, and dependency configurations required for running a user-defined bentoml.Service, packaged into a standardized format.

A Bento is Self-contained and
deployable

Everywhere.

How to save a model with Bento, create an API and deploy it?

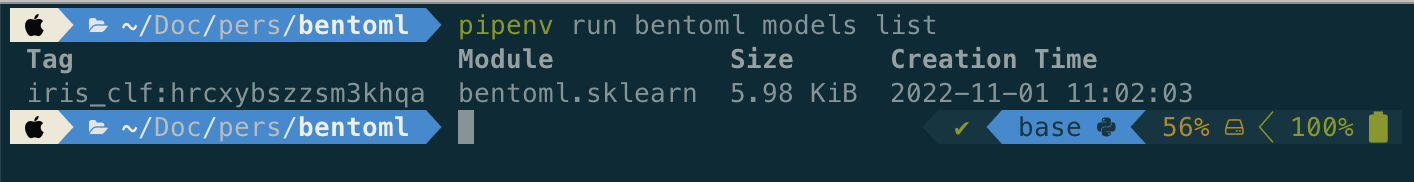

Step 1: save a model

import bentoml

from sklearn import svm
from sklearn import datasets

# Load training data set
iris = datasets.load_iris()
X, y = iris.data, iris.target

# Train the model
clf = svm.SVC(gamma='scale')
clf.fit(X, y)

# Save model to the BentoML local model store
saved_model = bentoml.sklearn.save_model("iris_clf", clf)
print(f"Model saved: {saved_model}")

# Model saved: Model(tag="iris_clf:hrcxybszzsm3khqa")

Step 2: Create a service

 import numpy as np
 import bentoml
 from bentoml.io import NumpyNdarray

 iris_clf_runner = bentoml.sklearn.get("iris_clf:latest").to_runner()

 svc = bentoml.Service("iris_classifier", runners=[iris_clf_runner])

 @svc.api(input=NumpyNdarray(), output=NumpyNdarray())
 def classify(input_series: np.ndarray) -> np.ndarray:
     result = iris_clf_runner.predict.run(input_series)
     return result

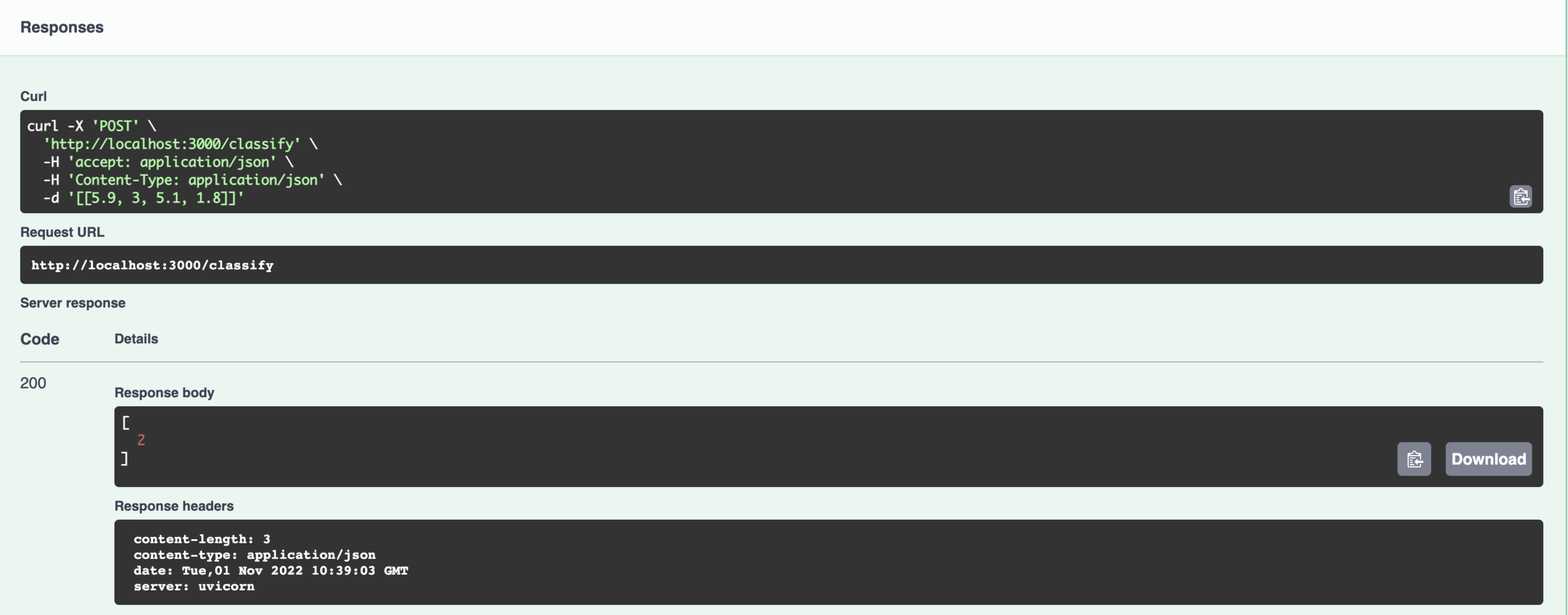

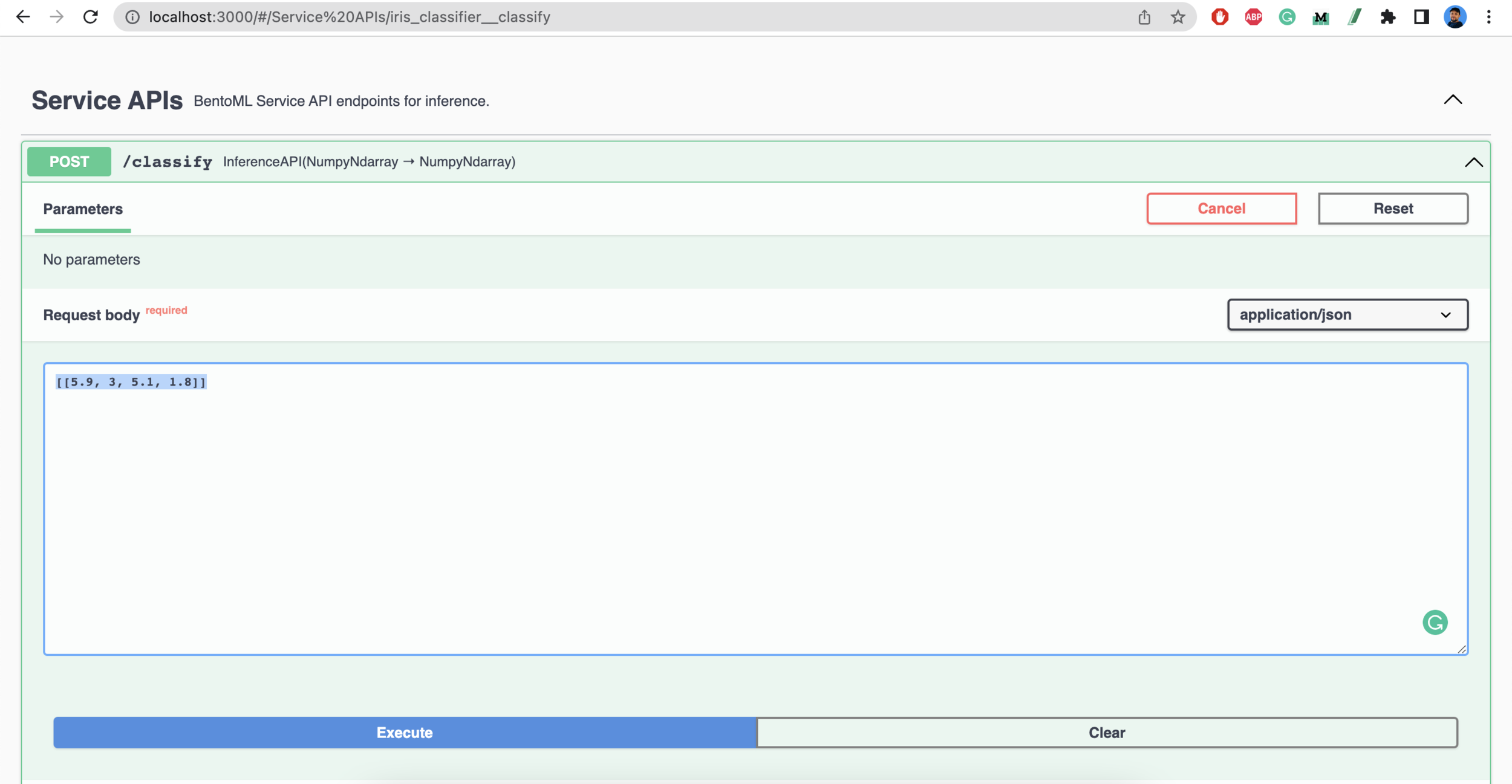

import requests

requests.post(
  "http://127.0.0.1:3000/classify",
  headers={"content-type": "application/json"},
  data="[[5.9, 3, 5.1, 1.8]]"
).text

'[2]'

Step 3: build a Bento 🍱

Define a bentofile.yaml

service: "service:svc"  # Same as the argument passed to `bentoml serve`
labels:
   owner: bentoml-team
   stage: dev
include:
- "*.py"  # A pattern for matching which files to include in the bento
python:
   packages:  # Additional pip packages required by the service
   - scikit-learn
   - pandas

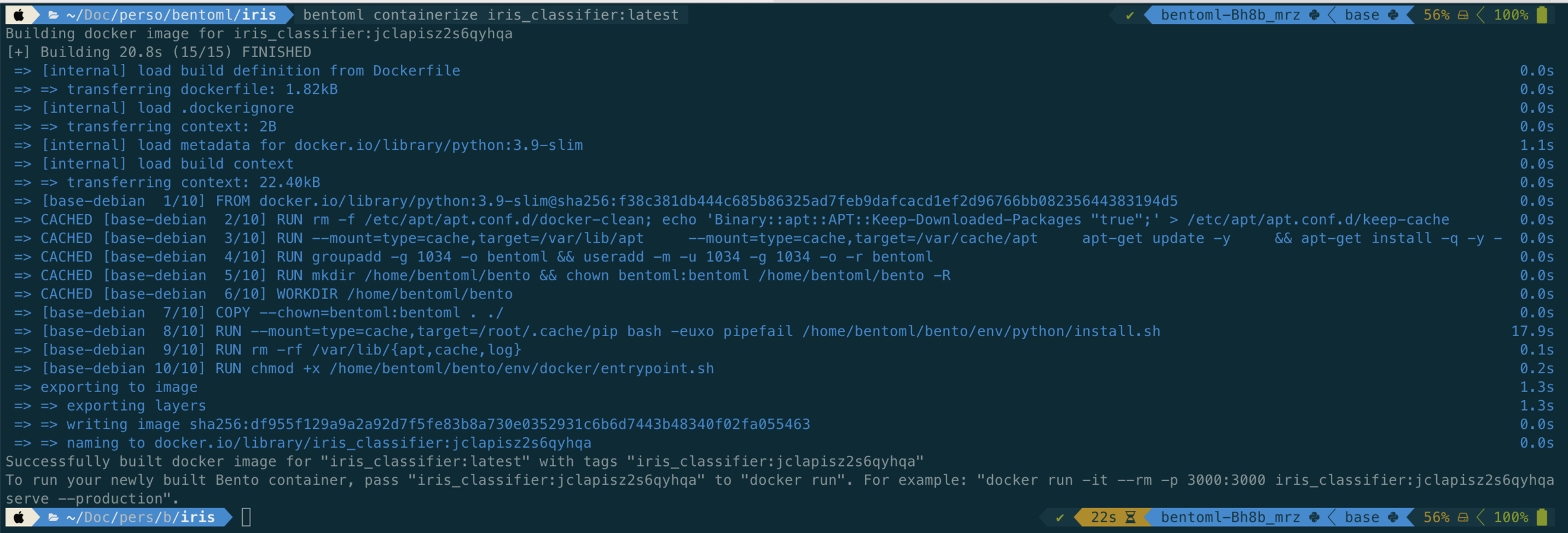

Step 4: containerize

 bentoml containerize iris_classifier:latest

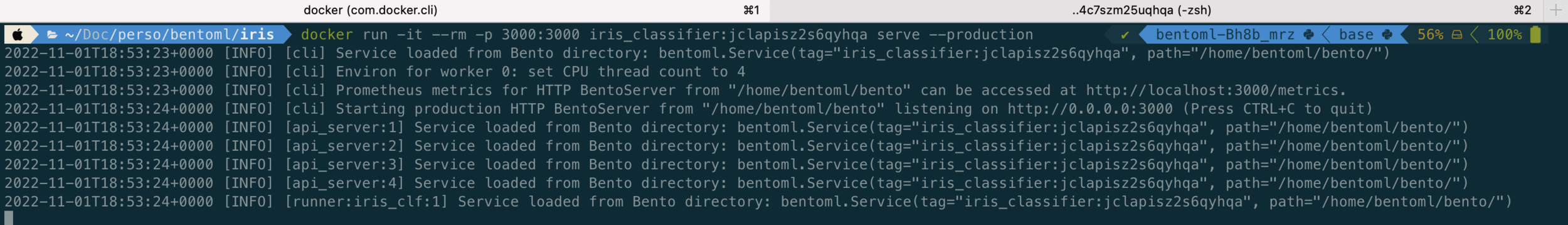

docker run -it --rm -p 3000:3000 iris_classifier:jclapisz2s6qyhqa serve --production

Step 5: deploy

We can do it in three ways



  1. 🐳 Generate container images from Bento for custom docker deployment

  2. 🚀 bentoctl: Fast model deployment on any cloud platform

  3. 🦄️ Yatai: Model Deployment at scale on Kubernetes

3. Super-charged ML features

to make your life easier

1. Micro Batching

Dynamically group prediction requests in real-time into batches for model inference


Increases performance of your app



Increases throughput leverages acceleration hardware

✅  Multiple input requests are run in parallel
✅  A proxy (i.e. a load balancer) distributes requests between workers (a worker is a running instance of an API server)
✅  Each worker distributes the requests to the model runners that are in charge of inference
✅  Each runner dynamically groups the requests in batches by finding a tradeoff between latency and throughput
✅  Runners make predictions on each batch
✅  Batch predictions are then split and released as individual responses

- How to enable batching?

bentoml.pytorch.save_model(
    name="mnist",
    model=model,
    signature={
        "__call__": {
            "batchable": True,
            "batch_dim": (0, 0),
        },
    },
)

send your parallel requests

Bentoml will take care of the rest

2. Parallel inference

Inference graph

Customizable control flows

Combine multiple models

gpt2_generator = (bentoml
                  .transformers
                  	.get("gpt2-generation:latest").to_runner())

distilgpt2_generator = (bentoml
                        .transformers
                        .get("distilgpt2-generation:latest").to_runner())

distilbegpt2_medium_generator = (bentoml
                                 .transformers
                                 .get("gpt2-medium-generation:latest").to_runner())

bert_base_uncased_classifier = (bentoml
                                .transformers
                                .get("bert-base-uncased-classification:latest").to_runner())

svc = bentoml.Service(
    "inference_graph",
    runners=[
        gpt2_generator,
        distilgpt2_generator,
        distilbegpt2_medium_generator,
        bert_base_uncased_classifier,
    ],
)

Load runners

Define service

Define inference workflow

@svc.api(input=Text(), output=JSON())
async def classify_generated_texts(original_sentence: str) -> dict:
    generated_sentences = [
        result[0]["generated_text"]
        for result in await asyncio.gather(
            gpt2_generator.async_run(
                original_sentence,
                max_length=MAX_LENGTH,
                num_return_sequences=NUM_RETURN_SEQUENCE,
            ),
            distilgpt2_generator.async_run(
                original_sentence,
                max_length=MAX_LENGTH,
                num_return_sequences=NUM_RETURN_SEQUENCE,
            ),
            distilbegpt2_medium_generator.async_run(
                original_sentence,
                max_length=MAX_LENGTH,
                num_return_sequences=NUM_RETURN_SEQUENCE,
            ),
        )
    ]

    results = []
    for sentence in generated_sentences:
        score = (await bert_base_uncased_classifier.async_run(sentence))[0]["score"]
        results.append(
            {
                "generated": sentence,
                "score": score,
            }
        )

    return results

3. Accelerated runtime

service: "service:svc"
include:
- "*.py"
python:
    packages:
    - torch
    - torchvision
    - torchaudio
    extra_index_url:
    - "https://download.pytorch.org/whl/cu113"
docker:
    distro: debian
    python_version: "3.8.12"
    cuda_version: "11.6.2"

Use GPU and declare it when building the Bento

4. Other cool features

  • API Documentation
  • Data validation
  • gRPC
  • Monitoring



https://docs.bentoml.org/en/latest/guides/index.html



3. Demo



4. Resources

to learn more and become a Bento expert



Interesting reads

How to deploy an ML model in production using BentoML

By Ahmed Besbes
