UI Testing
Best Practices
Stefano Magni (@NoriSte)
Front-end Developer for
Organised by
With
I'm Stefano Magni (@NoriSte)
I'm a passionate front-end developer, a testing & automation lover.
I work for Conio, a bitcoin startup based in Milan.
Here you can find my recent contributions.
Slides info
Words with different colors are links 🔗
best practices are highlighted
Slides are organized both horizontally and vertically (see the bottom-right arrows)
Slides info
Don't take notes or make photos... These slides are publicly available and I'll publish them on Meetup right after the talk 🎉
https://slides.com/noriste/fevr-ui-testing-best-practices
or
https://bit.ly/2Ii8UpV
Slides info
Some examples are based on Cypress (and the Testing Library plugin) but this talk won't be about Cypress itself.
A few concepts come from React, but don't worry if you don't know it pretty much.
Let's begin: what we test with UI testing:
-
👁 visual regressions
-
⌨️ interaction flows
-
🔁 client/server communication
We split UI testing in three kind of tests:
-
💅 Component tests
-
🚀 UI integration tests (front-end tests)
-
🌎 E2E tests (~ back-end tests)
Test types
💅 Component tests +
🚀 UI integration tests +
🌎 E2E tests =
🎉🎉🎉 High confidence
💅 With component tests we test a single component aspect/contract
- its generated markup (snapshot testing)
- its visual aspect (regression testing)
- its external callback contracts
Snapshot testing means checking the consistency of the generated markup.
import React from 'react';
import Link from '../Link.react';
import renderer from 'react-test-renderer';
it('renders correctly', () => {
const tree = renderer
.create(<Link page="http://www.facebook.com">Facebook</Link>)
.toJSON();
expect(tree).toMatchSnapshot();
});A test like the following one
Snapshot testing means checking the consistency of the generated markup.
exports[`renders correctly 1`] = `
<a
className="normal"
href="http://www.facebook.com"
onMouseEnter={[Function]}
onMouseLeave={[Function]}
>
Facebook
</a>
`;Produces a snapshot file like this
Snapshot testing means checking the consistency of the generated markup.
// Updated test case with a Link to a different address
it('renders correctly', () => {
const tree = renderer
.create(<Link page="http://www.instagram.com">Instagram</Link>)
.toJSON();
expect(tree).toMatchSnapshot();
});And a change in the test

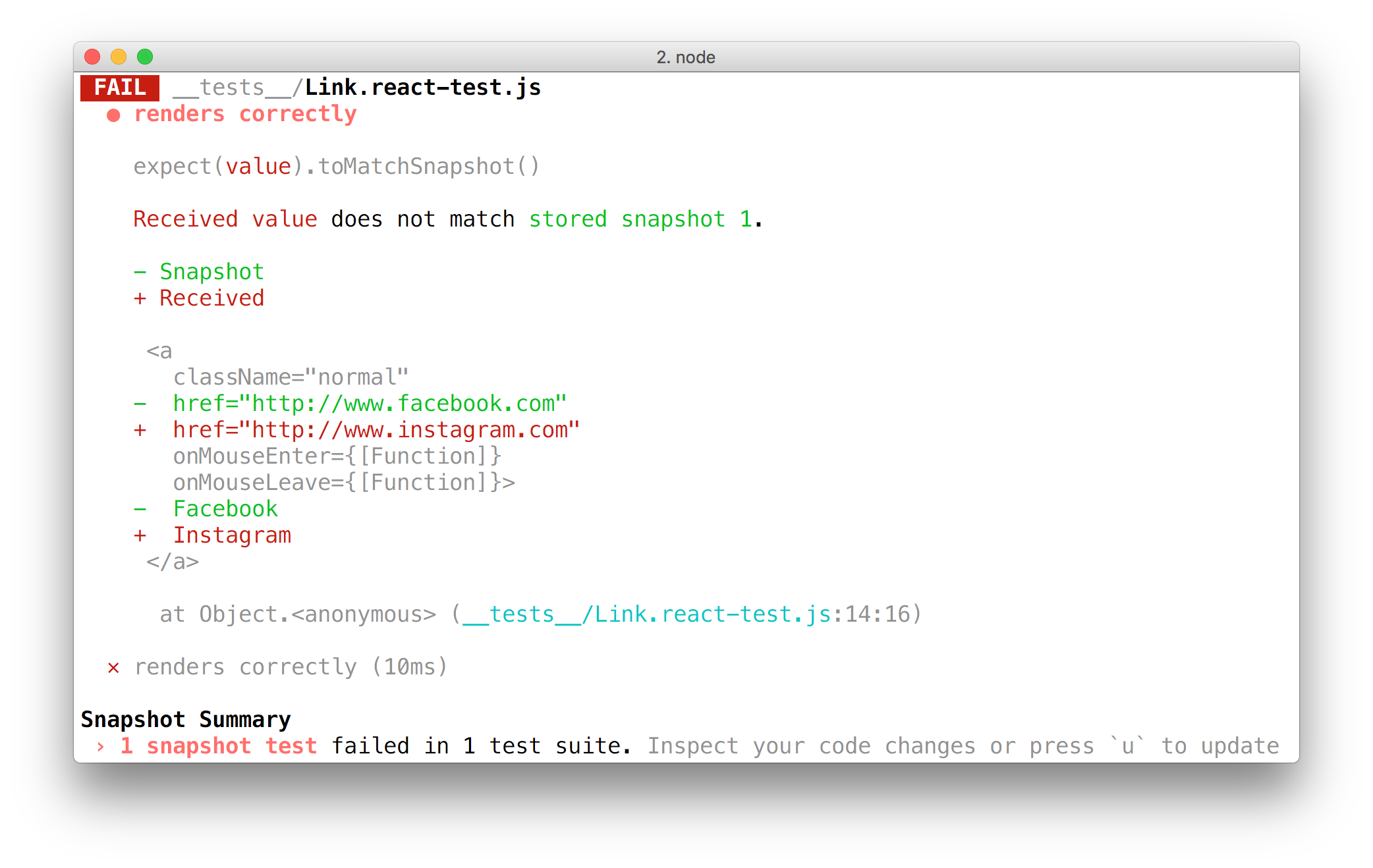

Snapshot testing means checking the consistency of the generated markup.
Makes the test fail
Regression testing means checking the consistency of the visual aspect of the component.

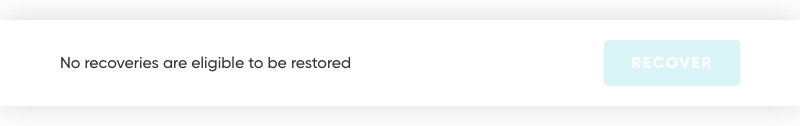

Take a look at this component

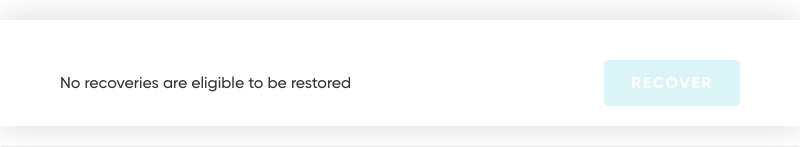

If we change its CSS
Regression testing means checking the consistency of the visual aspect of the component.

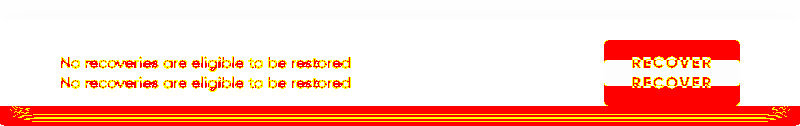

A regression test prompts us with the differences
Regression testing means checking the consistency of the visual aspect of the component.
Callback testing means checking the component respects the callback contract.
it('Should invoke the passed callback when the user clicks on it', () => {
const user = {
email: "user@conio.com",
user_id: "534583e9-9fe3-4662-9b71-ad1e7ef8e8ce"
};
const mock = jest.fn();
const { getByText } = render(
<UserListItem clickHandler={mock} user={user} />
);
fireEvent.click(getByText(user.user_id));
expect(mock).toHaveBeenCalledWith(user.user_id);
});💅 Component tests are made easy by dedicated tools like:
- Storybook (and its Storyshots add-on)
- React Testing Library (or Enzyme etc.)
Automate component tests
Otherwise: the more time we spend writing them, the higher the chance that we won't write them 😉

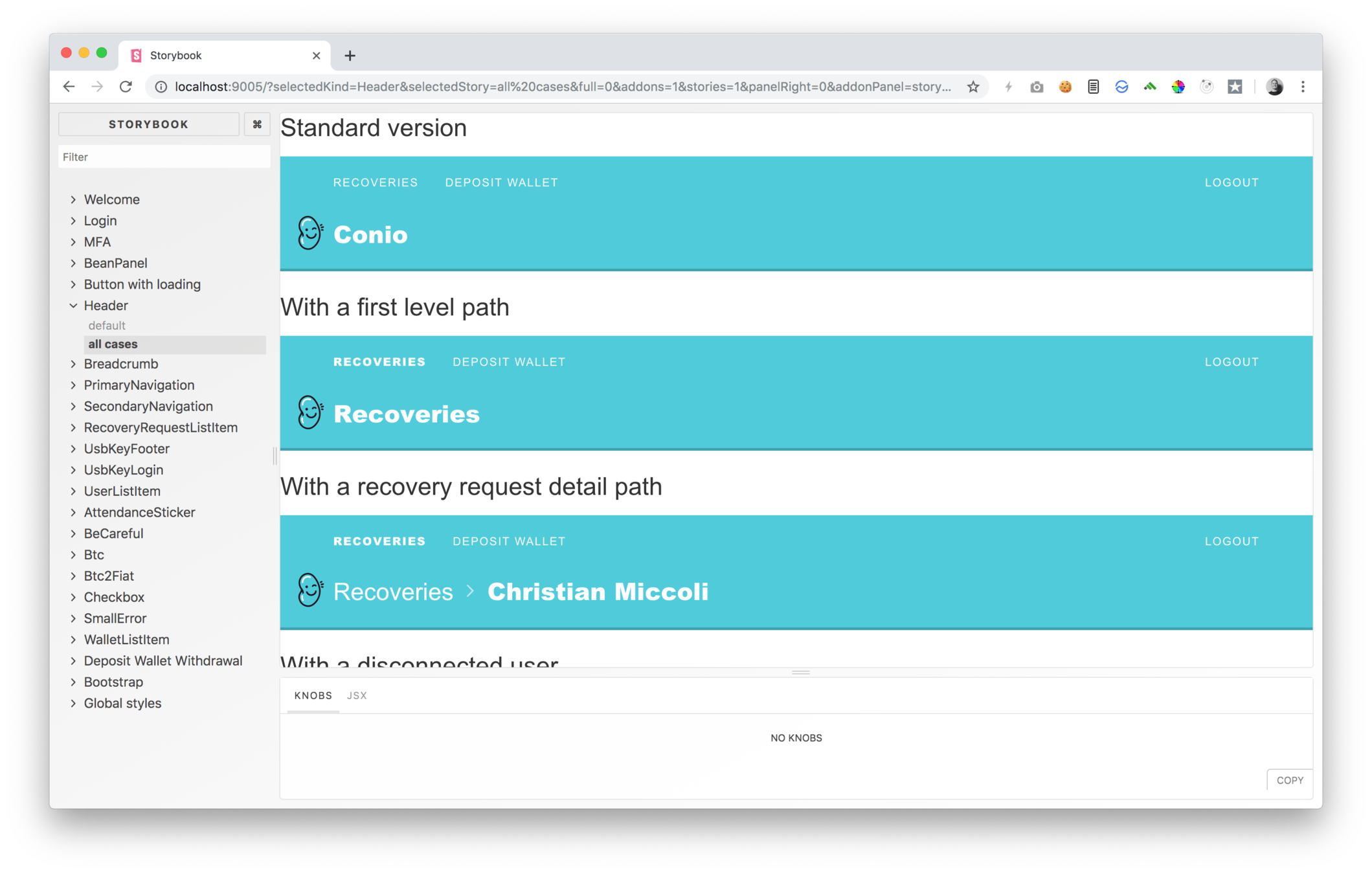

Once we have Storybook'ed your components...

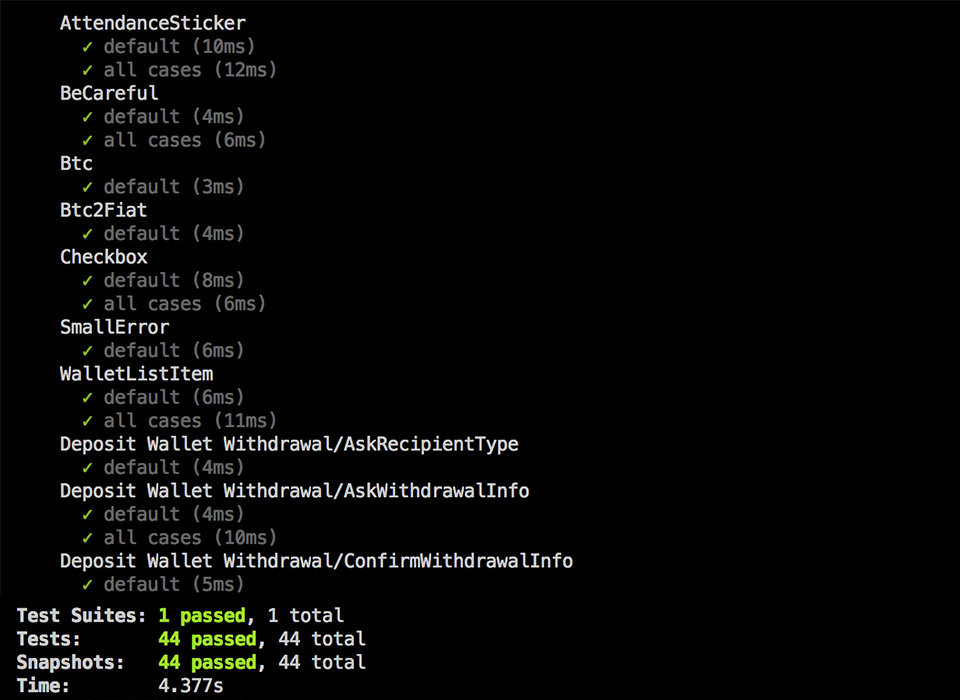

... We can automate the snapshot tests...
... With just a line of code!
import initStoryshots from "@storybook/addon-storyshots";
initStoryshots({
storyNameRegex: /^((?!playground|demo|loading|welcome).)*$/
});
* I used the regex to filter out useless component stories, like the ones where there is an animated loading
Regression tests: it's the same 😊
import initStoryshots from "@storybook/addon-storyshots";
import { imageSnapshot } from "@storybook/addon-storyshots-puppeteer";
// regression tests (not run in CI)
// they don't work if you haven't launched storybook
if (!process.env.CI) {
initStoryshots({
storyNameRegex: /^((?!playground|demo|loading|welcome).)*$/,
suite: "Image storyshots",
test: imageSnapshot({ storybookUrl: "http://localhost:9005/" })
});
} else {
test("The regression tests won't run", () => expect(true).toBe(true));
}
* I used the regex to filter out useless component stories, like the ones where there is an animated loading
If you don't use a style-guide tool like Storybook
At least automate the component and test creation with templates.
- Blueprint for VSCode
- React templates
- etc.
🚀 With UI integration tests: we consume the real UI in a real browser with a stubbed server.
They are super fast because the server is stubbed/mocked, we won't face network latencies and server slowness/reliability.
🚀 With UI integration tests we test the front-end. We can test every UI flow/state with confidence.
Write a lot of UI Integration tests
Otherwise: we write a lot of E2E tests but remember that they are not practical at all 😠

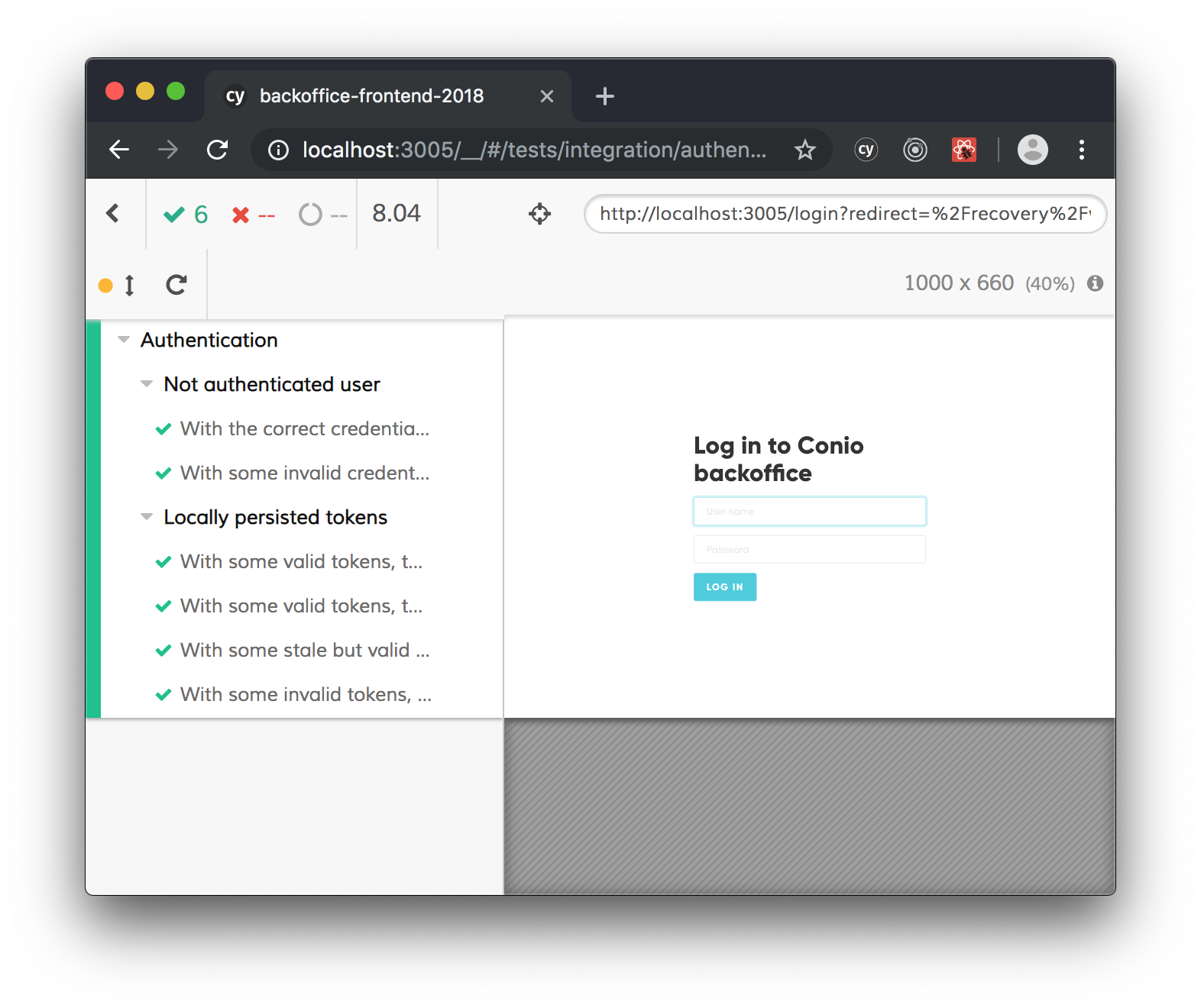

🚀 UI integration tests are really fast

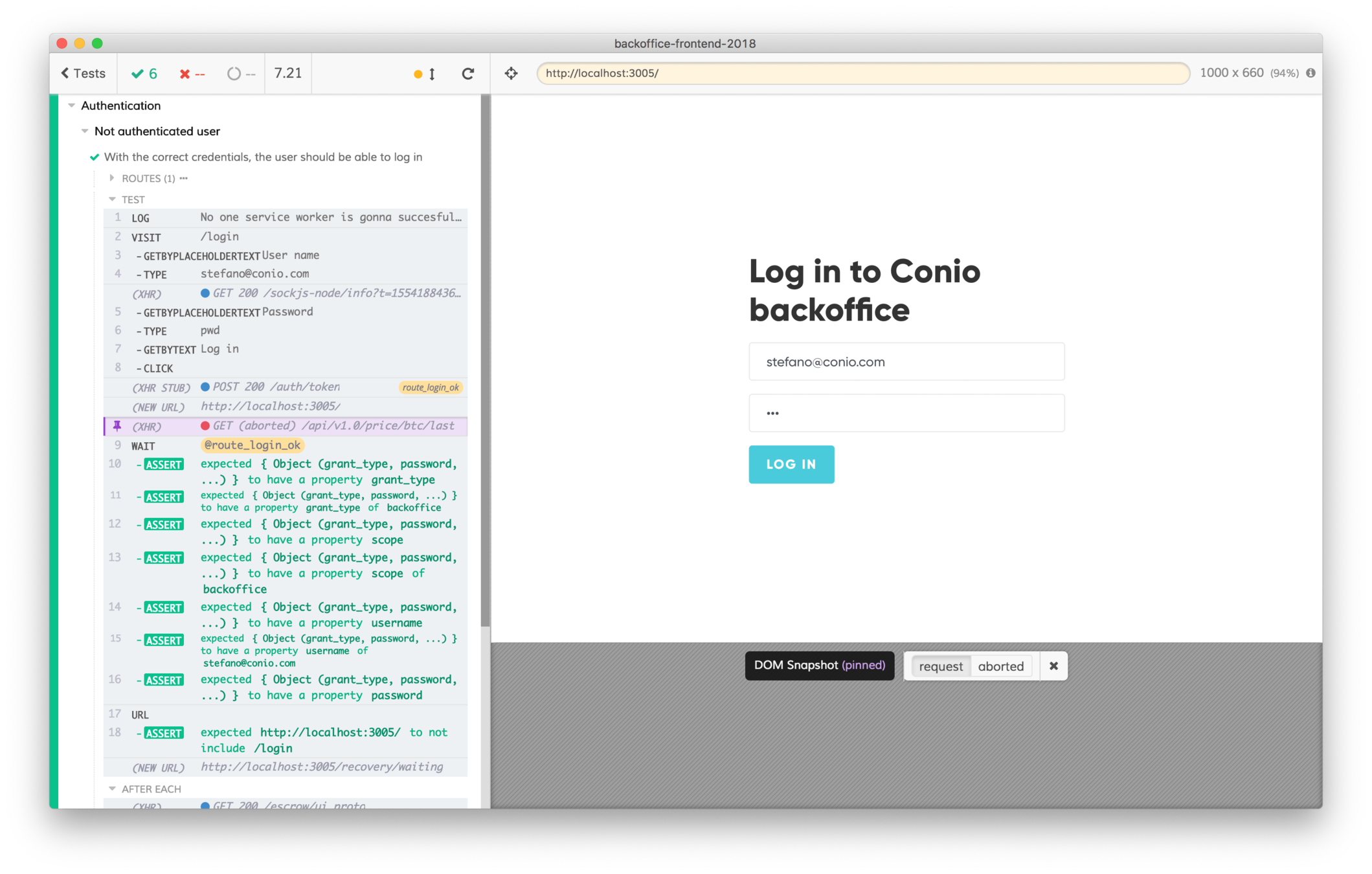

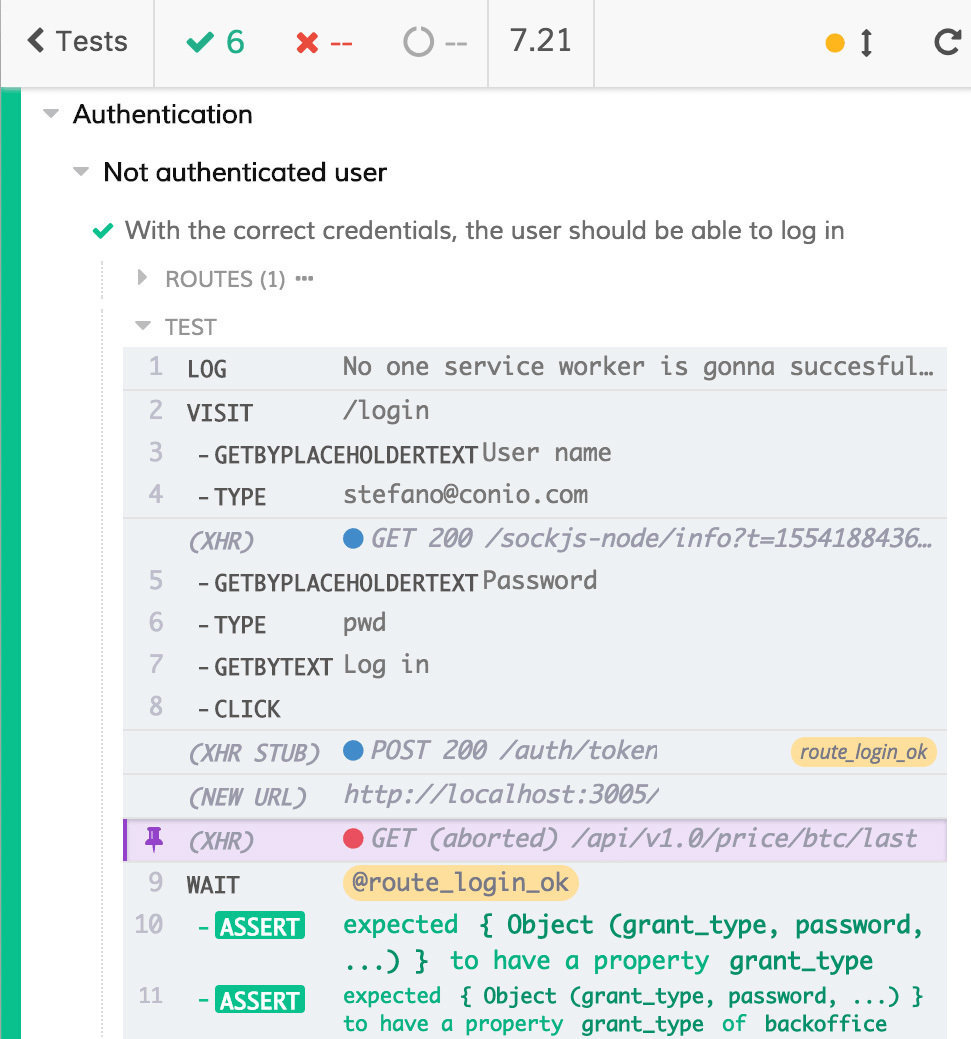

A Cypress screenshot
🌎 E2E tests: we consume the real UI in a real browser with the real server and data.
They are slow, even because we need to clear data before and after the tests.
With e2E tests we test the back-end.
Write a few E2E tests (just for the happy paths*)
Otherwise: our tests will be 10x slower and we make our back-enders and devOps accountable for our own tests.
* A happy path is a default/expected scenario featuring no errors.
The project I'm currently working takes:
-
4" for 18 💅 callback tests
-
5" for 44 💅 snapshot tests
-
46" for 44 💅 regression tests
-
82" for 48 🚀 UI integration tests
-
183" for 11 🌎 E2E tests
A simple example: authentication.
The steps usually are the following:
Show a success feedback
Go to the login page
Write username and password
Click "Login"
Redirect to the home page
A first (to be improved) test could be:
// Cypress example
cy.visit("/login");
cy.get(".username").type(user.email);
cy.get(".password").type(user.password);
cy.get(".btn.btn-primary").click();
cy.wait(3000); // no need for that, I added it on purpose
cy.getByText("Welcome back").should("exist");
cy.url().should("be", "/home");Otherwise: we need to inspect the DOM frequently in case of failures (adding unique and self-explicative IDs isn't an easy task compared with looking for content in a screenshot).
Base tests on contents, not on selectors
👨💻👩💻 The more we consume your front-end as the users do, the more our tests are effective.
// Cypress example
cy.get(".username").type(user.email);
cy.get(".password").type(user.password);
cy.get(".btn.btn-primary").click();// Cypress example
cy.getByPlaceholderText("Username").type(user.email);
cy.getByPlaceholderText("Password").type(user.password);
cy.getByText("Login").click();Otherwise: we risk to base your tests on attributes with a different purpose, like classes or ids.
As a second choice, use data-testid attributes
🛠 A dedicated attribute is more resilient to refactoring...
// Cypress example
// The login button now has an emoticon
// cy.getByText("Login").click();
cy.getByTestId("login-button").click();<button data-testid="login-button">✅</Button>🤦♂ ... Compared to other selectors...
<button
class="btn btn-primary btn-sm"
id="ok-button">
✅
</Button>Two useful plugins for Cypress
BTW, the test passes, everything is ok!
Go to the login page
Write username and password
Click "Login"
Redirect to the home page
Show a success feedback
But, after some changes/time, it fails...
What went wrong?
Go to the login page
Write username and password
Click "Login"
Redirect to the home page
Show a success feedback
😇 The front-end faults could be:
- the login button isn't dispatching the right action
- the credentials aren't passed in the action payload
- the request payload is wrong
🤬 The back-end faults could be:
- the accepted payload changed
- the response payload is wrong
- the server is down
😖 Other faults could be:
- the network is chocked
- the server is busy
🤔 There's room for too many errors, could the test be more self explanatory?
Let's refactor it!
Otherwise: we make our tests slower and slower.
Await, don't sleep
It always starts with...
"3 seconds sleeping are enough for an AJAX call!" 👍
⌛️ Then, at the first Wi-Fi slowness...
"I'll sleep the test for 10 seconds..." 😎
⌛️ Then, at the first server wakeup...
"... 30 seconds?" 😓
⌛️ ...
⌛️ ...
⌛️ ...
Well done, we have a 30 seconds sleeping test!
Even if our AJAX request usually lasts less than a second...
📡👀 Instead, wait for network responses
// Cypress example
cy.server();
cy.route({
method: "POST",
url: '/auth/token',
response: 'authentication-success.json'
}).as("route_login");
cy.getByPlaceholderText("Username").type(user.email);
cy.getByPlaceholderText("Password").type(user.password);
cy.getByText("Login").click();
// it doesn't matter how long it takes
cy.wait("@route_login");
cy.getByText("Welcome back").should("exist");
cy.url().should("be", "/home");👀 Everything can be awaited
🗒👀 Wait for contents
// Cypress example
cy.server();
cy.route({
method: "POST",
url: '/auth/token',
response: 'authentication-success.json'
}).as("route_login");
cy.getByPlaceholderText("Username").type(user.email);
cy.getByPlaceholderText("Password").type(user.password);
cy.getByText("Login").click();
// it doesn't matter how long it takes
cy.wait("@route_login");
cy.getByText("Welcome back").should("exist");
cy.url().should("be", "/home");⚛️👀 Wait for specific client state
We (I and Tommaso) have written a dedicated plugin! 🎉 Please thank the Open Source Saturday community for that, we developed it three days ago 😊
cy.waitUntil(() => cy.window().then(win => win.foo === "bar"));🚜 Waiting for some external events/data makes your tests more robust and with better hints in case of failures.
🎉 Dedicated UI testing tools embeds dynamic waitings.
For example, Cypress waits (by default, we can adjust it) up to:
- 60 seconds for a page load
- 5 seconds for a XHR request start
- 30 seconds for a XHR request end
- 4 seconds for an element to appear
😅 Ok, It was just a network issue, now the test is green
Go to the login page
Write username and password
Click "Login"
Show a success feedback
Wait for the network request
Redirect to the home page
Ten releases later... The test fails...
Go to the login page
Write username and password
Click "Login"
Show a success feedback
Wait for the network request
Redirect to the home page
Here we are again... But, wait, the test could tell us something more!
Test AJAX request and response payloads
Otherwise: we waste your time debugging our test/UI just to realize that the server payloads are changed.
📡 ➡ 📦 Use UI integration tests to check the request payload
cy.wait("@route_login").then(xhr => {
const params = xhr.request.body;
expect(params).to.have.property("grant_type", AUTH_GRANT);
expect(params).to.have.property("scope", AUTH_SCOPE);
expect(params).to.have.property("username", user.email);
expect(params).to.have.property("password", user.password);
});📡 ⬅ 📦 Use E2E tests to check the response payload
cy.wait("@route_login").then(xhr => {
expect(xhr.status).to.equal(200);
expect(xhr.response.body).to.have.property("access_token");
expect(xhr.response.body).to.have.property("refresh_token");

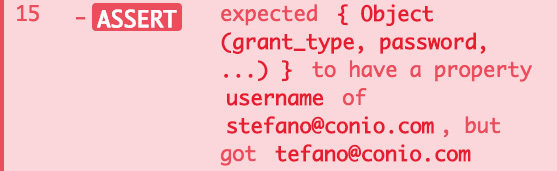

});Otherwise: we spend more time than needed to find why a test failed.
Assert frequently
We aren't unit-testing, a user flow has lot of steps.
cy.getByPlaceholderText("Username").type(user.email);
cy.getByPlaceholderText("Password").type(user.password);
cy.getByText("Login").click();
cy.wait("@route_login").then(xhr => {
const params = xhr.request.body;
expect(params).to.have.property("grant_type", AUTH_GRANT);
expect(params).to.have.property("scope", AUTH_SCOPE);
expect(params).to.have.property("username", user.email);
expect(params).to.have.property("password", user.password);
});
cy.getByText("Welcome back").should("exist");
cy.url().should("be", "/home");Otherwise: we waste time relaunching the test to discover what's wrong with some data.
Use the right assertion
An example
// wrong
expect(xhr.request.body.username === user.email).to.equal(true);
// right
expect(xhr.request.body).to.have.property("username", user.email);Failure feedback
Nice, we'll be notified the next time someone changes the payload!
Go to the login page
Write username and password
Click "Login"
Check both request and response payloads
Wait for the network request
Show a success feedback
Redirect to the home page
What's next? How could we improve the test again?
Otherwise: we break the tests more often than needed.
Stay in context
We're testing that the user will be redirected away after a successful login.
cy.getByText("Welcome back").should("exist");
cy.url().should("be", "/home");Changing the success redirect could make the test fail.
cy.getByText("Welcome back").should("exist");
cy.url().should("be", "/home");No more 😌
cy.getByText("Welcome back").should("exist");
cy.url().should("not.include", "/login");Otherwise: we break the tests with minor changes.
Share constants and utilities with the app
What happens if the login route becomes "/authenticate"? 😖
cy.getByText("Welcome back").should("exist");
cy.url().should("not.include", "/login");Now it isn't a problem anymore!
import { LOGIN } from "@/navigation/routes";
// ...
cy.url().should("not.include", LOGIN);Otherwise: we are nagged by failing tests every time we make minor changes to your app.
Avoid testing implementation details
He told me to assert frequently... I wanna check the Redux state too!
Go to the login page
Write username and password
Click "Login"
Check both request and response payloads
Wait for the network request
Check the Redux state
Redirect to the home page
Show a success feedback
Check the Redux state
Avoid it! The Redux state isn't relevant!
🧨 What happens if you refactor the state? The test fails even if the app works!
// Cypress example
cy.window().then((win: any) => {
const appState = win.globalReactApp.store.getState();
expect(appState.auth.usernme).to.be(user.email);
});Otherwise: we lose the type guard safety while writing tests.
If the app is based on TypeScript, use it while testing too
Tests are, after all, just little scripts. Using Typescript with them warns you promptly when the types change.
Look at every change of the server schema
Otherwise: we will debug someone else's faults or miss any important update that can affect our front-end.
To keep the schema checked you can use:
- GIT
- Postman
I developed a small NPM package too
That highlights the changes in a text document
Otherwise: we block the back-enders from running them and check themselves they haven't broken anything.
Allow to run the E2E tests only
Add a dedicated NPM script
"scripts": {
"test:e2eonly": "cypress run --spec \"cypress/**/*.e2e.*\""
}Otherwise: we won't leverage the power of an automated tool.
Consider your testing tool a development tool
Usually, we
Add the username input field ⌨️
Try it in the browser 🕹
Add the password input field ⌨️
Try it in the browser 🕹
Add the submit button ⌨️ ➡️ 🕹
Add the XHR request ⌨️ ➡️ 🕹
Manage the error case ⌨️ ➡️ 🕹
Check we didn't break anything 🕹🕹🕹🕹
Fix it ⌨️ ⌨️ ⌨️ ➡️ 🕹🕹🕹🕹
Check again 🕹🕹🕹🕹
Fix it ⌨️ ➡️ 🕹🕹🕹🕹
Then, when everything works, we write the tests 😓
Fill the username input field 🤖
Fill the password input field 🤖
Click the submit button 🤖
Check the XHR request/response 🤖
Check the feedback 🤖
Re-do it for every error flow 🤖
Could this flow be improved? 🤔
Yep, we could:
Add the username input field ⌨️
Make Cypress fill the username input field 🤖
Add the password input field ⌨️
Make Cypress fill the password input field 🤖
Add the submit button ⌨️ ➡️ 🤖
Add the XHR request ⌨️ ➡️ 🤖
Manage the error case ⌨️ ➡️ 🤖
Check we didn't break anything
Fix it
But, mostly, we don't need to write the tests 🎉
How can we debug our app while we're developing and testing it alongside?

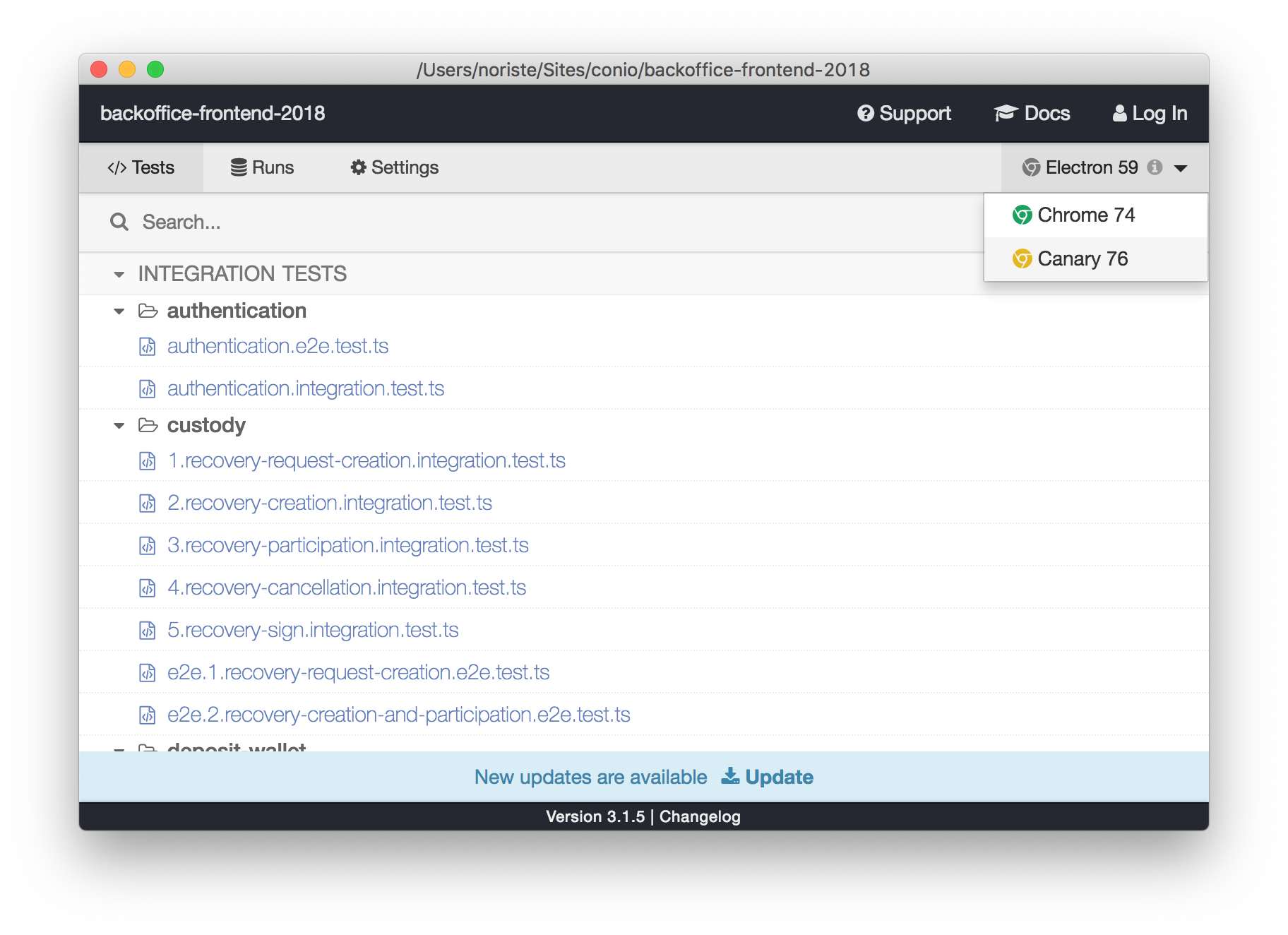

Cypress allows us to use a "dedicated" browser...
... Where we can install custom extensions too
Summing up
-
tests mustn't fail for minor app updates
-
if they fail, they must drive us directly to the issue
-
the less time we spend writing tests, the more we love them
We are preparing a
two-day workshop
I and Jaga Santagostino are preparing a two-day workshop about everything related to JavaScript testing.
The first one will be about React testing.
Drop us a line if you want to know more about it 🗣
UI Testing Best Practices book/repository
I started working on a big repository about UI Testing Best Practices, let me know if you want to contribute 🤗
Recommended courses
Recommended sources
❤️ For the early feedbacks, thanks to
Thank you!
🙏 Please, give me any kind of feedback 😊
Next talks: Working Software and Voxxed Days Ticino
UI testing best practices - FEVR
By Stefano Magni
UI testing best practices - FEVR
In June 2019 I had a talk for the FEVR community (http://www.fevr.it/eventi/2019/06/ui-testing-best-practices/). The talk aimed to share my own experience with UI testing 🤙
