by Gerard Sans |  @gerardsans

Ivy Renderer

for Dummies

Ivy Renderer for Dummies

SANS

GERARD

Developer Advocate AWS

Developer Advocate AWS

International Speaker

Spoken 121 times in 29 countries

Timeline

Angular v2

Future ready

2016

Renderer (v1)

NgModules (SSR)

Angular v4

Stable and performant

Animations and HttpClient

New Renderer: ViewEngine (v2)

New angular.io website

2017

Angular v8

Smaller, Faster and Easier to use

Differential Loading

New Renderer: Ivy preview (v3)

Lazy routes dynamic imports

2019

Why we need a Renderer?

Responsibilities

  • Transform Angular abstractions
  • Create and manipulate DOM
  • Bindings & change detection
  • Create CSS and animations

Benefits

  • Multiplatform support
  • Support: DOM, Web Worker, Mobile, Desktop, SSR
  • Avoid repetitive code
  • Better Performance
import { Component } from '@angular/core';

@Component({
  selector: 'app-root',
  template: `<h1>{{title}}</h1>`
})
export class AppComponent {
  title = "Angular Renderer";
}
app.component.ts

AppComponent

<app-root></app-root>
<script src="app.js"></script>

//app.js
function app(title) {
  const app = document.querySelector("app-root");
  const h1 = document.createElement("h1");
  const text = document.createTextNode(title);
  h1.appendChild(text);
  app.appendChild(h1);
}
app("Angular Renderer"); //bootstrap

Naive Renderer Code

<app-root>
  <h1>Angular Renderer</h1>
</app-root>

Output

Evolution

Renderer v1

ViewEngine v2

Ivy Renderer v3

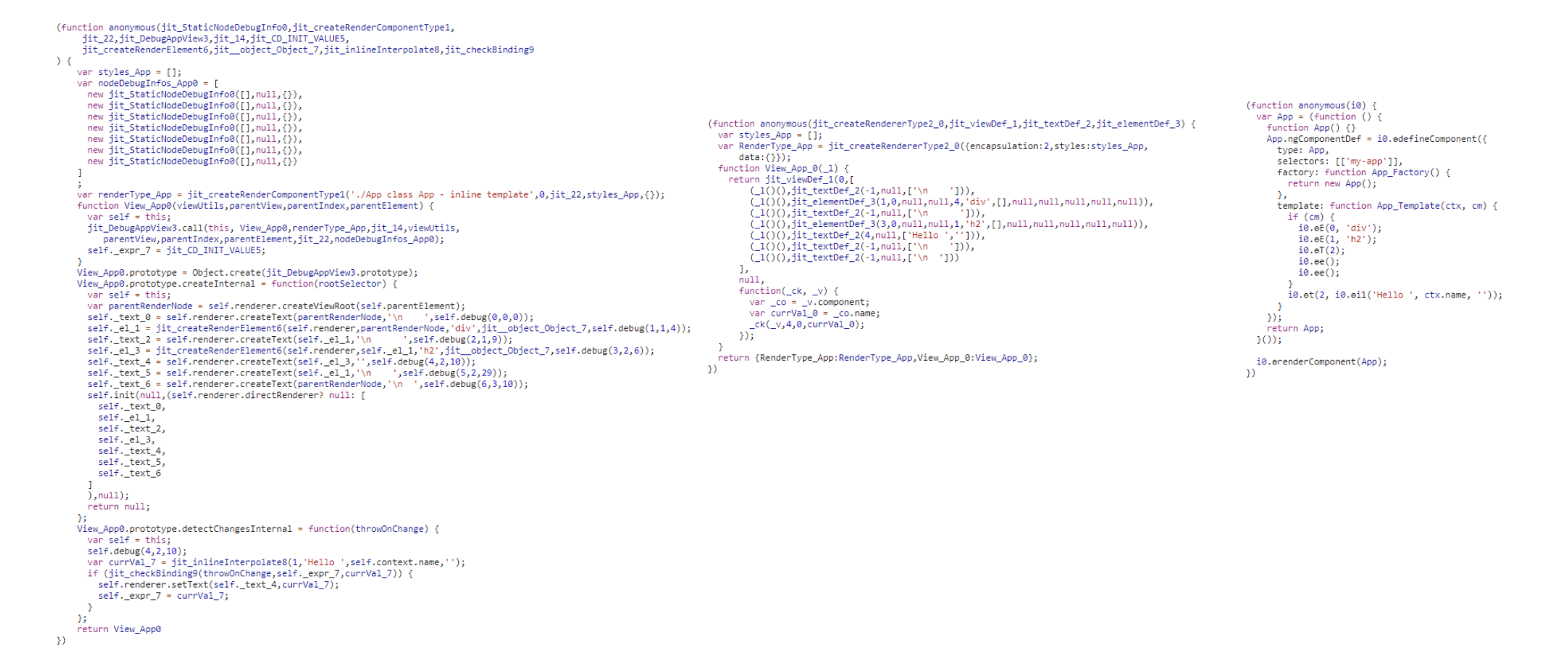

Rendering Pipeline

ViewEngine vs Ivy Rendering

Template Data

Template HTML

Angular Interpreter

DOM

Template Instructions

Template HTML

DOM

🏁🏎

🐢

import {
  Component, ɵrenderComponent as renderComponent
} from '@angular/core';
@Component({
  selector: 'app',
  template: `<h1>{{title}}</h1>`
})
class AppComponent {
  title="Ivy Renderer";
}

renderComponent(AppComponent);

Ivy Component

var AppComponent = /** @class */ (function () {
  AppComponent.ngComponentDef = i0.ɵdefineComponent({
    type: AppComponent,
    selectors: [["app-root"]],
    consts: 2,
    vars: 1,
    template: function AppComponent_Template(rf, ctx) {
      if (rf & 1) {
        i0.ɵelementStart(0, "h1");
        i0.ɵtext(1);
        i0.ɵelementEnd();
      } if (rf & 2) {
        i0.ɵtextBinding(1, i0.ɵinterpolation1("", ctx.title, ""));
      }
    }, encapsulation: 2
  });
}());
export { AppComponent };

Ivy Output

Ivy Renderer

Ivy Rollout Plan

Ivy Compiler

v7

v8

v9

Ivy Runtime

Ivy Preview

Improved Type Checking

background Layer 1

Smaller Bundles

background Layer 1

Backwards Compatible

background Layer 1

Faster Compilation

background Layer 1

Simpler Debugging

background Layer 1

Ivy Features

v9

v9

v9

Smaller Bundles

Angular Hello world app minified uncompressed

Ivy Tree Shaking

  • Template syntax & life-cycle hooks
  • DI, Listeners, Pipes, Queries
  • Content projection
  • Structural directives

Incremental DOM

Source: Medium

Ivy Component Locality

  • Incremental builds
  • Pre-compiled builds on npm
  • Improved Lazy Loading
  • Faster initial load

Simpler Debugging

Breakpoints in HTML

background Layer 1

Debug Change Detection

background Layer 1

Small Memory Footprint

background Layer 1

Faster Tests

background Layer 1

Bonus Benefits

Bug fixes

background Layer 1

Virtual vs Incremental DOM

Source: Medium

Try it!

Using Angular CLI flag

{
  "compilerOptions": {
    "experimentalDecorators": true,
    ...
  },
  "angularCompilerOptions": {
    "fullTemplateTypeCheck": true,
    "enableIvy": true,
  }
}

tsconfig.json

Enable Ivy Renderer

More

@karaforthewin

@jasonaden1

@vikerman

Jason Aden

Kara Erickson

Vikram Subramanian

@yearofmoo

Matias Niemelä

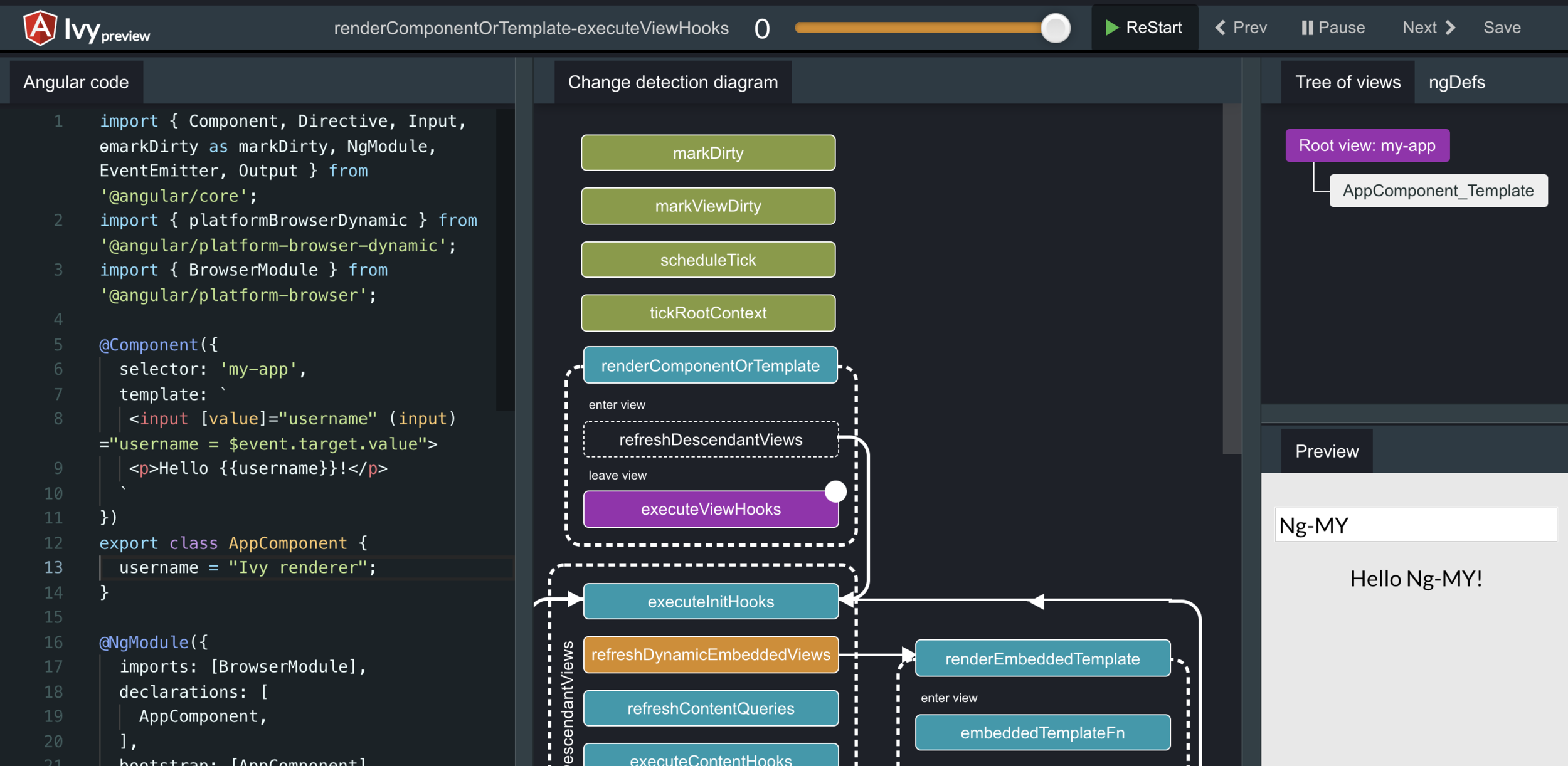

Ivy Renderer Playground

Ivy Renderer for Dummies

By Gerard Sans

Ivy Renderer for Dummies

What is exactly the Ivy Renderer? What features will affect the way we build apps? How can we benefit for this technology? In this presentation I will cover these and other fundamental questions while demonstrating all the features available today!
