Flexbox CSS
+

mediaQuery


Browser support

Why

@angular/flex-layout?

Pure TypeScript layout engine

Independent of Angular Material

No external CSS stylesheets

Angular CLI Integration

Static API

Static Layout API

CSS Flexbox Model

API for DOM containers

fxLayout API

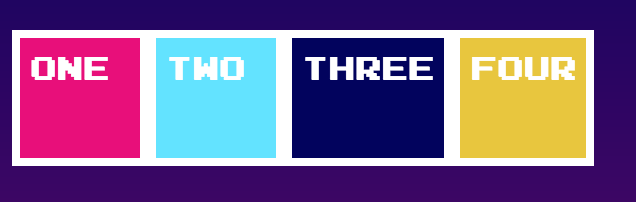

<div fxLayout="row">
  <div>One</div>
  <div>Two</div>
  <div>Three</div>
  <div>Four</div>
</div>

<div fxLayout="column">
  <div>One</div>
  <div>Two</div>
  <div>Three</div>
  <div>Four</div>
</div>

fxLayout options

<div fxLayout="row-reverse">
...
</div>

API for flex elements

fxFlex API

1. flex-grow

2. flex-shrink

3. flex-basis

3 parameters:

flex-grow

Defines how much a flexbox item should grow  ( proportional to the others) if there's space available.

flex-shrink

defines how much a flexbox item should shrink if there is not enough space available.

flex-basis

controls the default size of the element

fxFlex

<div fxLayout="row" fxLayoutAlign="center">
  <div fxFlex="1 1 auto">One</div>
  <div fxFlex="5 1 auto">Two</div>
  <div fxFlex="1 1 auto">Three</div>
  <div fxFlex="1 1 auto">Four</div>
</div>

fxFlex options

• fxFlex
• fxFlex="2 2 calc(10em + 10px)"
• fxFlex="102px"
• fxFlex="auto"

The flex-basis values can be pixels, percentages, calcs, em, vw, vh, or known aliases.

Runtime expressions

To use runtime expressions, developers should use the box-notation to specify 1-way DataBind (to an expression).

<div [fxFlex]="twoColumnSpan">...</div>

Responsive API

Material Design Breakpoints

Media Queries and Aliases

Visibility example

<div fxShow fxHide.xs="false" fxHide.lg="true"></div>

• xl, then fallback to the default fxShow; so the div is shown
• lg, then the div is hidden (since the value === 'true')
• md, then fallback to the default fxShow; so the div is shown
• sm, then fallback to the default fxShow; so the div is shown
• xs, then the div is shown (since the value === 'false')

Sizing example

<div fxFlex="50%" fxFlex.gt-sm="100%"></div>

• xl, then fallback to 'gt-sm' so the div sizing is 100%
• lg, then fallback to 'gt-sm' so the div sizing is 100%
• md, then fallback to 'gt-sm' so the div sizing is 100%
• sm, then fallback to the default fxFlex="50%"; so the div is 50%
• xs, then fallback to the default fxFlex="50%"; so the div is 50%

Special Responsive Features

ngClass API

@angular/flex-layout ngClass directive is a subclass of the @angular/common ngClass directive

Classname assignments with               selector (and its responsive versions) are destructive and will overwrite any existing classnames in use.

class

ngClass API

The Flex-Layout ngClass adds responsive features to add/remove CSS classes  for activated breakpoints

<some-element ngClass="first second"
  [ngClass.xs]="{'first':false, 'third':true}">
</some-element>

Adaptive layouts

• different components for different breakpoints
• alter animations based on viewport size

JavaScript API (Imperative)

Programmatic features

ObservableMedia

injectable ObservableMedia service provides mediaQuery activations notifications for all registered breakpoints

ObservableMedia:

API summary

• subscribe(): Subscription
• asObservable(): Observable<MediaChange>
• isActive(query: string): boolean

ObservableMedia::subscribe()

subscribe(
  next?: (value: MediaChange) => void,
  error?: (error: any) => void,
  complete?: () => void
): Subscription;

Subscribe to mediaQuery activations

import {Subscription} from "rxjs/Subscription";
import {MediaChange, ObservableMedia}
  from "@angular/flex-layout";

constructor(media: ObservableMedia) {
  this.watcher = media.subscribe(
    (change: MediaChange) => {

      if ( change.mqAlias == 'xs') {
        this.loadMobileContent();
      }

    });
}

ObservableMedia::asObservable()

import {Subscription} from "rxjs/Subscription";
import 'rxjs/add/operator/filter';
import {MediaChange, ObservableMedia}
from "@angular/flex-layout";


export class MyDemo {

  constructor(media: ObservableMedia) {
      media.asObservable()
        .filter((change: MediaChange) =>
            change.mqAlias == 'xs')
        .subscribe(() => this.loadMobileContent() );
  }
}

ObservableMedia::isActive()

Custom breakpoints

• Developers can easily override the default breakpoints used within Flex-Layout

• Build custom providers to override the default BreakPointRegistry provider



Customising breakpoints

import { NgModule } from '@angular/core';
import { DEFAULT_BREAKPOINTS, BreakPoint } from '@angular/flex-layout'
import { validateSuffixes } from '@angular/flex-layout/utils';

/**
 * For mobile and tablet, reset ranges
 */
function updateBreakpoints((it:BreakPoint) => {
  switch(it.alias) {
    case 'xs' : it.mediaQuery =  '(max-width: 470px)';   break;
    case 'sm' : it.mediaQuery =  '(min-width: 471px) and (max-width: 820px)'; break;
  }
  return it;
})

@NgModule({
  providers: [
    // register a Custom BREAKPOINT Provider
    {
      provide : BREAKPOINTS,
      useFactory : function customizeBreakPoints() {
        return validateSuffixes(RAW_DEFAULTS.map( updateBreakpoints ));
      }
    }
  ]
})
export class MyBreakPointsModule { }

"Holy Grail" of layouts

<div>
  <header>header</header>
  <div>

    <nav>nav</nav>

    <article>article</article>

    <aside>aside</aside>

  </div>
  <footer>footer</footer>
</div>

<div fxLayout="column">
  <header>header</header>
  <div fxLayout="row" fxLayout.xs="column"
    fxFlex="1 1 auto">

    <nav fxFlex="1 6 20%" fxFlexOrder
        fxFlexOrder.xs="2">nav</nav>

    <article fxFlex="3 1 60%" fxFlexOrder
        fxFlexOrder.xs="1">article</article>

    <aside fxFlex="1 6 20%" fxFlexOrder
        fxFlexOrder.xs="3">aside</aside>

  </div>
  <footer>footer</footer>
</div>

Resources

Angular Flex-Layout

https://github.com/angular/flex-layout

Visual guide to Flex

http://cssreference.io/flexbox/

Slides

http://slides.com/cherrypick/deck-9

Demo

https://github.com/cheerypick/flex-app

Gitter Chat

https://gitter.im/angular/flex-layout
